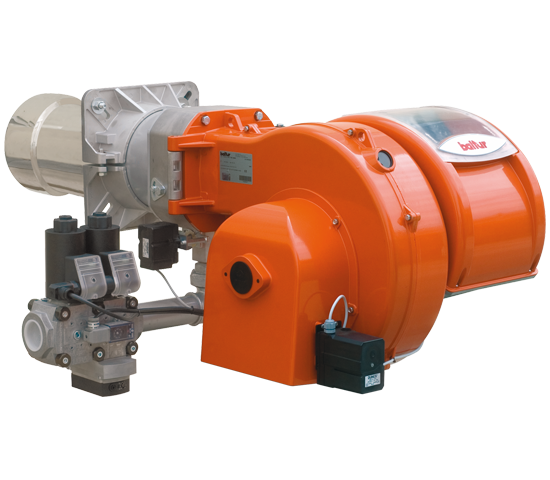

Burners
TBG 360 ME 60Hz
Code 17805410Progressive/modulating two-stage gas burners with electronic cam.
- Two-stage progressive.
- Electronic modulating control.
- Home
- Products
- Burners
- Gas burners
- TBG 360 ME 60Hz
Technical data
Fuel
Natural Gas
Operation
Electronic Modulation
Minimum Thermal Power (kW) to ErP
500
Maximum Thermal Power (kW) to ErP
3600
Min flow rate (Sm³/H)
53
Max flow rate (Sm³/H)
381
NOx class - natural gas
2
Electric power supply type
AC
No. of Phases
3N
Power Supply Voltage (V)
380
Power Supply Frequency (Hz)
60
Fan Motor Power (kW)
9
Weight with packaging (kg)
117.3
Width (mm)
1070
Depth (mm)
870
Height (mm)
720
Technical Descriptions
Gas burner compliant with European standard EN676. Electronic operation at two progressive stages.
Continuous modulation operation by installing P.I.D. controller in the control panel (to be ordered separately with modulation probe).
Modulation ratio 1:5.
Gas burner with low NOx and CO emissions in accordance with European standard EN676: class 2.
Regulating combustion air and blast-pipe.
Combustion air intake with throttle damper. Air flow adjustment with electric servomotor.
Fully closing air damper on shutdown to avoid loss of heat through the chimney.
Maintenance facilitated by the possibility of removing the combustion head without having to remove the burner from the boiler.
Sliding boiler coupling flange to adapt the blast-pipe to the various types of boilers.
Easy maintenance thanks to the two-sides hinge which allows the removal of the combustion head without having to remove the burner from the boiler.
Device made of sound-absorbing material to reduce fan noise.
CE version gas train is complete with butterfly valve, operation and safety valve with electromagnetic drive, valve tightness control, minimum pressure switch, pressure regulator and gas filter.
Fail proof connectors for burner/gas train connection
Gas train exit: high/low.
Flame detection by ionisation electrode with connector for micro amp meter.
Control panel equipped either with display showing the working process and with the keyboard for the burner adjustment.
Electric control board in light alluminum alloy with IP55 protection rating
Documents
Public documents
Type summary
Revision
Publish Date
Languages
Reserved documents
Operating range
This product is part of the range TBG ME
